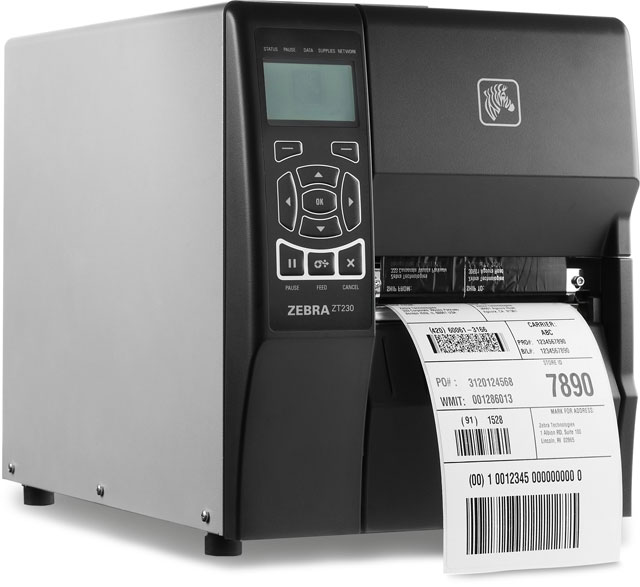

Zebra incorporated extensive customer feedback, as well as the legacy of its Stripe® and S4M™ printers, to create the new ZT200™ series printers, which feature space-saving design, effortless setup, intuitive user operation, and ease of service and maintenance.
Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT200 series is the right choice for a variety of labeling applications. This innovative new printer provides many user benefits.
The ZT200 series offers a streamlined design and smaller footprint that takes up less physical space than the Stripe and S4M models. ZT200 series printers require minimal operator training and benefit from tool-less standard component maintenance and a durable design to minimize service. Your IT staff will appreciate the backwards compatibility, since it allows for new printers to be up and running with minimal time and effort.
The ZT200 series has been designed for ease of use, versatility and outstanding value.
| Standard Features | Print methods: direct-thermal or thermal-transfer (optional) |
| Construction: metal frame with choice of metal (ZT230) or plastic (ZT220) media cover | |
| Bi-fold media door with large clear window | |
| Side-loading supplies path for simplified media and ribbon loading | |
| Element Energy Equalizer™ (E3™) for superior print quality | |
| Bi-color LEDs for quick printer status | |
| Icon-based LCD multilingual graphical user interface and full function keypad (ZT230) | |
| Simple keypad (ZT220) | |
| USB 2.0 and RS-232 serial ports | |
| Energy Star-compliant | |
| Printer Specifications | Resolution |
| 203 dpi/8 dots per mm | |
| 300 dpi/12 dots per mm (optional) | |
| Memory | |
| Standard: 128 MB flash (58 MB user-available), 128 MB DRAM | |
| Print Width | |
| 4.09”/104 mm | |
| Print Speed | |
| 6”/152 mm per second | |
| Media Sensors | |
| Transmissive and reflective sensors | |
| Media Characteristics | |
| Maximum label and liner width: 4.5”/114 mm | |
| Maximum non-continuous label length: 39”/991 mm | |
| Media Width | |
| 0.75”/19.4 mm to 4.50”/114 mm | |
| Print Length | |
| 203dpi: 157”/3,988 mm | |
| 300dpi: 73”/1,854 mm | |
| Maximum Media Roll Size | |
| 8.0”/203 mm O.D on a 3.0”/76 mm I.D. core | |
| 6.0”/152 mm O.D. on a 1.0”/25 mm I.D. core | |
| Media Thickness | |
| 0.003”/0.076 mm to 0.010”/0.25 mm | |
| Media Types | |
| Continuous, die-cut, notch, black mark | |
| Ribbon Characteristics | (Thermal-transfer option only) |
| Outside Diameter | |
| 3.2”/81.3 mm on a 1.0”/25 mm I.D. core (ZT230) | |
| Standard Length | |
| 300 m/984’ (ZT220) or 450 m/1,476’ (ZT230) | |
| Ratio | |
| 2:1 media-roll-to-ribbon ratio for ZT220 | |
| 3:1 media-roll-to-ribbon ratio for ZT230 | |
| Width | |
| 1.57”/40 mm to 4.33”/110 mm | |
| Ribbon Setup | |
| Ribbon wound ink-side out, core to core | |
| Operating Characteristics | Environmental |
| Operating Temperature: 40° F/5° C to 105° F/ 40° C (Thermal Transfer) 32° F/0° C to 105° F/ 40° C (Direct Thermal) | |
|
Storage/Transport Environment:-40° F/-40° C to 140° F/60° C
|
|
| Operating humidity: 20% to 85% non-condensing | |
| Storage humidity: 5% to 85% non-condensing | |
| Electrical | |
| Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 47-63 Hz | |
| Energy Star-compliant | |
| Agency Approvals | |
| IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 | |
| cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S Mark, CCC, GOST-R, KCC, BSMI, UkrSepro | |
| Physical Characteristics | ZT220 closed: |
| Width: 9.4”/239 mm | |
| Height: 11”/280 mm | |
| Depth: 17”/432 mm | |
| Weight: 17 lbs/7.8 kg | |
| ZT230 closed: | |
| Width: 9.5”/242 mm | |
| Height: 10.9”/277 mm | |
| Depth: 17”/432 mm | |
| Weight: 20 lbs/9.1 kg | |
| Options and Accessories | Communication |
| Parallel (Bi-directional interface) | |
| Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option that enables the use of Webview and Alert features | |
| Media Handling | |
| Rewind: internally rewinds a full roll of printed labels on 76mm (3”) core, or peels and rewinds liner (Factory installed only) | |
| Peel: Front mount, passive peel option | |
| Peel: Liner take-up option – additional full roll liner take-up spindle accommodates standard printer base | |
| Cutter: Front mount guillotine cutter and catch tray | |
| 25.4mm (1”) I.D. Core media supply hanger | |
| Ink-side in ribbon supply spindle | |
| RFID | |
| Supports tags compatible with UHF EPC Gen 2 V1.2/ISO 18000-6C | |
| Integrated RFID system is user-upgradable in the field and available on both 104mm and 168mm models | |
| Adaptive Encoding Technology automatically selects optimum encode settings | |
| Keyboard Display Unit | |
| Supports KDU Plus™ and ZKDU: Enter variable data and retrieve stored forms for standalone applications | |
| Link-OS Solutions | Software Tools |
| Document Design: Quickly design a customized print solution using your business data and Zebra’s intuitive, plug-and-print design tools. | |
| Device Integration: Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems. | |
| Device Management: Manage your print operations locally and globally with Zebra’s suite of device management tools. | |
| Developer Tools: Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more. | |
| Firmware | Resident ZPL, ZPL II® and EPL programming languages, selectable through software or front panel. |
| XML-enabled Printing — allows XML communications for barcode label printing. | |
| Barcode Symbologies | Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code |
| 2-Dimensional Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec | |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts |
| Asian and other international scalable and smooth bitmapped fonts | |
| Unicode: For multi-language printing | |
| Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats | |
| IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control | |
| Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0 | |
| * Specifications subject to change without notice. |
